Fire Pump Series

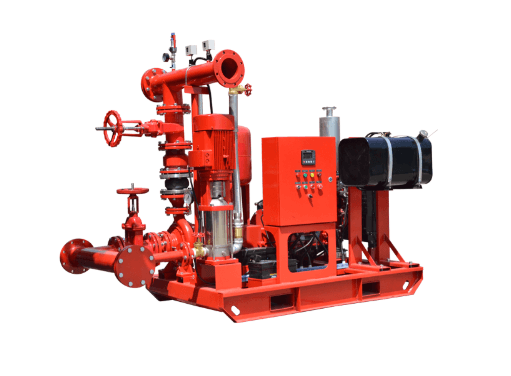

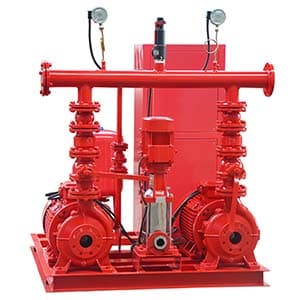

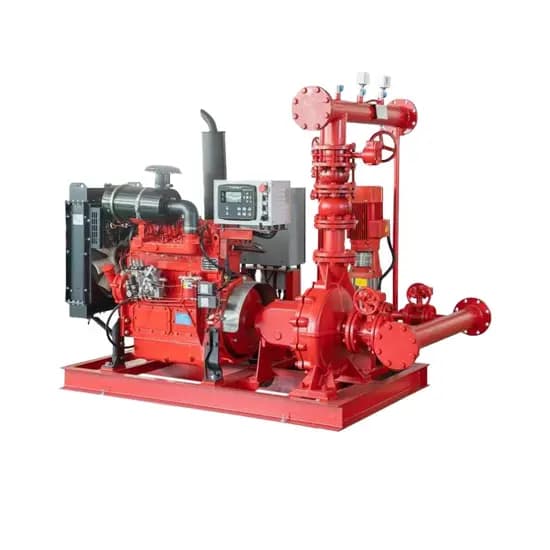

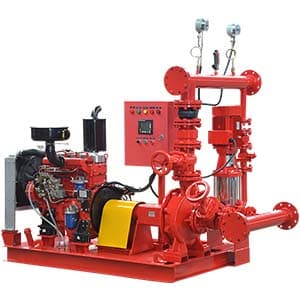

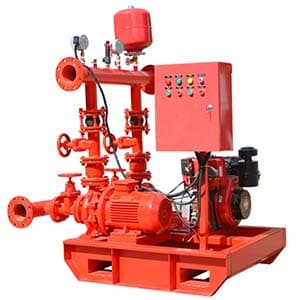

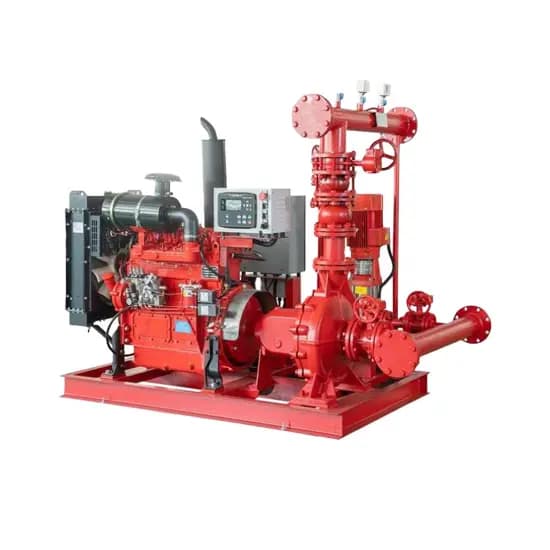

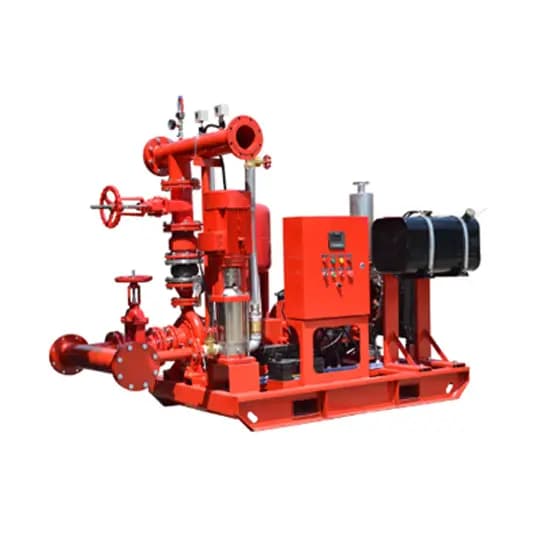

Diesel engine + jockey pump set
Fire pump Diesel engine fire pump Spray system pump Fire hydrant pump 100GPM 200GPM 300GPM 500GPM 750GPM 800GPM 1000GPM 1250GPM 1500GPM Fire voltage stabilization Emergency fire pump fire linkage
- Flow: 5-400L/s
- Head: 3-15Bar
- Caliber: 65-250mm
- Pressure: 0.3~1.5MPa
- Speed: 740-2900r/min
- Material: HT200, SS304, Bronze
Product Overview
Product overview
Fire pump Diesel engine fire pump Spray system pump Fire hydrant pump 100GPM 200GPM 300GPM 500GPM 750GPM 800GPM 1000GPM 1250GPM 1500GPM Fire voltage stabilization Emergency fire pump fire linkage
Fire protection, water supply and industrial project applications.
Pump, driver, controller, base frame, pipework and project documents where applicable.
Product Structure
Main structure and package scope
Main electric fire pump for regular emergency operation.
Diesel engine standby pump for backup water supply.
Jockey pump for pressure maintenance and small leakage compensation.
Control panel, base frame, valves and pipe fittings configured as a package.
Applications
Recommended project applications
Technical Data
Specifications and selection data
- Flow
- 5-400L/s
- Head
- 3-15Bar
- Caliber
- 65-250mm
- Pressure
- 0.3~1.5MPa
- Speed
- 740-2900r/min
- Material
- HT200, SS304, Bronze
- Caliber
- 50-200mm
- Flow
- 100,200,300,500,750,1000…GPM
- Head
- 3,4,5,6,8,9,10…BAR
- Power
- 10,15,25,40,75,100,150…HP
- Operation
- 1duty + 1 standby + 1 jockey
- Contain
- Diesel engine, Jockey pumps
- System
- pumps control panel, (pressure vessel) use for fire fighting
- Materia l
- HT200, SS304, Bronze, carbon steel
Get Quote
Request price and technical data for Diesel engine + jockey pump set.
Send your working condition and we will reply with model recommendation, datasheet and quotation support.
